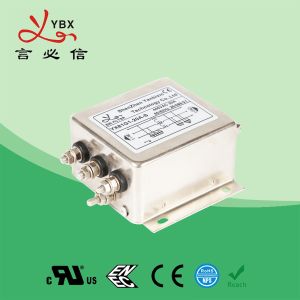

Enhanced performance EMC EMI AC Power Line Noise Filter three Stage
with high attenuation For Control Cabinet
| Item | Power line Filter |
| Model | Power line Filter YB-D/F |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Nominal Center Frequency | 10K-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 115V/250V |
| Rated Current | 8A,10A, 15A,20A,30A, 40A |
| Environmental Temperature | 40°C |
| Temperature Range | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 1450VDC |
| Line to Ground | 2250VDC |
| Maximum Leakage Current | 250VAC/60HZ 0.8mA Max |
| MOQ | Negotiable |
| Price | Negotiable |
| Lead Time | 5~15 weekday |
Features:
-- Using multi-stage filter circuit, with excellent common mode and
differential mode noise suppression, general purpose power line
filter with fast-on/stud/wire terminals
-- Standard filters are a practical solution, which can helping you
to pass EMI
-- There are a variety of parts and combinations to meet different
customer's EMC tests
-- Customized products according to customer's requirements.
Typical Applications:
-- Electrical and electronic equipment
-- Medical equipment
-- Building automation
-- Office automation and datacom equipment
-- Various noisy applications requiring high filter performance
Rule of Nomination:
YB 42 D3 - 10A - Q ( 5 )
¦ ¦ ¦ ¦ ¦ ¦
circuit case current connection optional
Tabulates:
| Model No. | Rated Current
@40°C | Terminal Options* | Leakage current 250V/50Hz | Electrical Schematic | Rated Voltage(V) | Operating Frequency(Hz) |
|
| | |
| YB42D3-1A | 1A | Q | S | W |
<1.0mA | Fig.1 |
115/250V |
50/60Hz |
| YB42D3-2A | 2A | Q | S | W | Fig.1 |
| YB42D4-3A | 3A | Q | S | W | Fig.1 |
| YB42D4-4A | 4A | Q | S | W | Fig.1 |
| YB42D4-6A | 6A | Q | S | W | Fig.1 |
| YB42D5-8A | 8A | Q | S | W | Fig.1 |
| YB42D5-10A | 10A | Q | S | W | Fig.1 |
| YB42D5-15A | 15A | Q | S | W | Fig.1 |
| YB42D6-10A | 10A | Q | S | W | Fig.1 |
| YB42D6-15A | 15A | Q | S | - | Fig.1 |
| YB42F2-20A | 20A | Q | S | T | Fig.1 |
| YB42F2-25A | 25A | - | S | T | Fig.1 |
| YB42F3-30A | 30A | - | S | T | Fig.1 |
Medical Type Tabulates:
| Model No. | Rated Current
@40°C | Terminal Options | Medical equipment
5 | Leakage current 250V/50Hz | Electrical Schematic | Rated Voltage(V) | Operating Frequency(Hz) |
|
| | |
| YB42D3-1A-x(5) | 1A | Q | S | W | 5 |
<5μA | Fig.2 |
115/250V |
50/60Hz |
| YB42D3-2A-x(5) | 2A | Q | S | W | 5 | Fig.2 |
| YB42D4-3A-x(5) | 3A | Q | S | W | 5 | Fig.2 |
| YB42D4-4A-x(5) | 4A | Q | S | W | 5 | Fig.2 |
| YB42D4-6A-x(5) | 6A | Q | S | W | 5 | Fig.2 |
| YB42D5-8A-x(5) | 8A | Q | S | W | 5 | Fig.2 |
| YB42D5-10A-x(5) | 10A | Q | S | W | 5 | Fig.2 |
| YB42D5-15A-x(5) | 15A | Q | S | W | 5 | Fig.2 |
| YB42D6-10A-x(5) | 10A | Q | S | W | 5 | Fig.2 |
| YB42D6-15A-x(5) | 15A | Q | S | - | 5 | Fig.2 |
| YB42F2-20A-x(5) | 20A | Q | S | - | 5 | Fig.2 |
*Q: Fast-on 6.35x0.8mm
S: Screw lug
W: UL1015 18awg
Electrical schematic:
Fig.1 Standard type
Fig.2 Medical type
Mechanical Dimension(Unit: mm)
| Case | D3 | D4 | D5 | D6 | F2 | F3 | Tolerances |
|
| A | 63 | 63 | 73 | 94 | 98 | 150 | ±1 |
|
| B | 51 | 51 | 56 | 55 | 80 | 105 | ±1 |
|
| C | 29 | 38 | 45 | 45 | 41 | 60 | ±1 |
|
| D | 75 | 75 | 87 | 104 | 95 | 120 | ±0.15 |
|
| E | 85 | 85 | 98 | 118 | 50 | 80 | ±1 |
|
| F | 25 | 27 | 30 | 30 | 50 | 60 | ±0.5 |
|
| G | 10 | 15.5 | 16 | 15 | 24 | 35 | ±0.5 |
|
| H | 5 | 4.5 | 4.5 | 4.5*6 | 4.2 | 4*6 | ±0.15 |
|
| I | | | | | 4.2*6.2 | 4*6 | ±0.15 |
|
| J | | | | | M4/M6 | M4/M6 | |
|
| K | 6.3*0.8 | 6.3*0.8 | 6.3*0.8 | 6.3*0.8 | M4 | M4 | ±0.15 |
|
| L | | | | | 50 | 60 | ±2 |
|
Insertion loss table(In 50ohm system according to IEC/CISPR No.17)
Common mode -------- differential mode
The packing pictures:
FAQ:
Q: What are the main products of your company?
A: IEC inlet socket EMI filter, single-phase filter, Three-phase
RFI filter, house appliance noise filter, Medical equipment filter,
inverter/converter EMC filter, etc.
Q: What is the function of your product EMC/EMI/noise filter?
A: The function of power line filters is to filter the
electromagnetic interference, ensuring that your equipment is
working properly without interference with each other
Q: Are your products belong to high-quality
A: Yes, our products have passed UL, TUV, CE, ROHS, CQC approval.
our customers like Hisense, Foxconn recognize our products well.
Q: What are services available for pre-batch orders?
A: Free samples and EMC technical rectification services are
supplied before-sale
Q: What are services available after-sale?
A: Free replacement within three-month, free maintenance within
six-year, life-long maintenance.
Q: Do you supply OEM/ODM services?
A: Yes, we can do OEM/ODM only if you meet our MOQ request for
OEM/ODM customers
Q: Can you provide Research and development New product service?
A: Yes, Our R&D team can custom product as your requirement.
