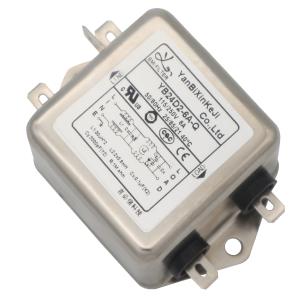

Power Line Filter 1A~10A EMI Noise Filter Double Stage Single Phase
Filter
| Item | Power EMI Filter |
| Model | YB24D2-6A-W |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Nominal Center Frequency | 10K-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 115V/250V |
| Rated Current | 1~20A |
| Environmental Temperature | 40°C |
| Temperature Range | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 1450VDC |
| Line to Ground | 2250VDC |
| Maximum Leakage Current | 250VAC/60HZ 0.8mA Max |
| MOQ | Negotiable |
| Price | Negotiable |
| Lead Time | 15-25 weekday |
Features:
-- Designed 2 stage enhanced filtering to prevent the power supply
may produce interference to the device
-- Various terminal options allow you to select
-- There are a variety of parts and combinations to meet different
customer's EMC tests
-- Customized products according to customer's requirements.
Typical Applications:
-- Electrical and electronic equipment
-- Medical equipment
-- Building automation
-- Office automation and datacom equipment
Rule of Nomination:
YB-----24-----D2----------6A-------Q/S/W----------(5)
¦ ¦ ¦ ¦ ¦
circuit case current connection optional
*Q: Fast-on 6.35x0.8mm
S: Screw lug
W: UL1015 18awg
Electrical Schematic:
general-purpose Fig.1
Medical type Fig.2
Mechanical Dimension(Unit: mm)
Insertion loss table(In 50ohm system according to IEC/CISPR No.17)
Common mode -------- differential mode
1A 3A
6A 15A
Sample
-- Sample Fee: Negotiate
-- Sample Time: 3~5 days
Payment
---Payment terms: Western Union, D/P, T/T, L/C
---Please remember to leave the correct contact information for
delivery.
Packaging
Power Line Filter: CTN/108pcs
N/G W.: 0.14/0.18KG/pcs
Measures:0.565*0.285*0.205m
Shipment
---Shipping terms: DHL, UPS, FedEx, TNT, EMS
---Port is Shenzhen or as requests.
Factory Pictures:
Our certifications and patents:
Single Phase Filter:
cUL: 20190321-E471748
TUV: B0899310001Rev.01
CQC: 19001226449
CE: SZAIS180620005-01
ROHS: MMCRHRWM60371744
Three Phase Filter:
cUL: 20190325-E502442
ENEC: ENEC-02580
CE: SZAIS180620005-01
ROHS: MMCRHRWM60371744
Our Advantages:
- We are a listed company. NO:667344, brand guarantee, reliable quality
- We have UL; cUL; TUV; CQC; CE; ROHS; ISO9001:2015; REACH
certification to ensure the product quality
- We have the relevant professional experimental equipment, so we can
provide a free diagnostic conducting test for you.
- Free EMC rectification technical support and provide free test
samples
- Automation technology, scale production, excellent price
- Good service, fast delivery!
- After-sales service: free replacement within three months, free maintenance within 6
years, life-long maintenance
- Cooperate with the top scientific research laboratory
- We have a professional R&D team
FAQ:
Q: What are the main products of your company?
A: IEC inlet socket EMI filter, single-phase filter, Three-phase
RFI filter, house appliance noise filter, Medical equipment filter,
inverter/converter EMC filter, etc.
Q: What is the function of your product EMC/EMI/noise filter?
A: The function of power line filters is to filter the
electromagnetic interference, ensuring that your equipment is
working properly without interference with each other
Q: Are your products belong to high-quality
A: Yes, our products have passed UL, TUV, CE, ROHS, CQC approval.
our customers like Hisense, Foxconn recognize our products well.
Q: What are services available for pre-batch orders?
A: Free samples and EMC technical rectification services are
supplied before-sale
Q: What are services available after-sale?
A: Free replacement within three-month, free maintenance within
six-year, life-long maintenance.
Q: Do you supply OEM/ODM services?
A: Yes, we can do OEM/ODM only if you meet our MOQ request for
OEM/ODM customers
Q: Can you provide Research and development New product service?
A: Yes, Our R&D team can custom product as your requirement.
